| Package Size: | 11.05 * 4.65 |
|---|---|
| Frequency Range: | 1.8432 - 100 |
| Frequency Tolerance[10^-6@+25℃]: | ±10 - ±30 |
| Temperature Range: | -20 - +70, -40 - +85 |
| RoHS And Pb Free: | |
| Files Download: | Datasheet |
| Shopping: | |

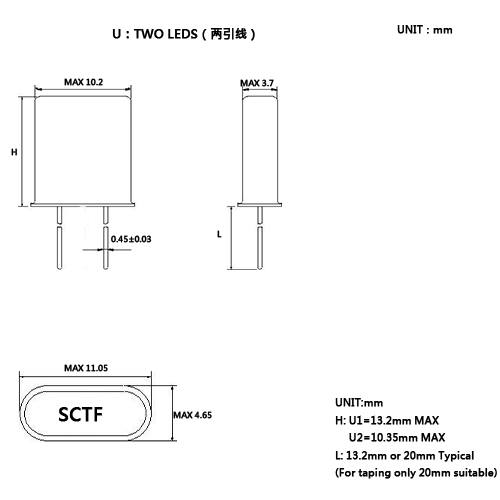

Holder Type | HC-49U |
Frequency Range | 1.8432MHz to 100MHz |
Frequency Tolerance（△F）（at25℃） | ±10ppm to ±30ppm |
Frequency Drift | ±10ppm to ±30ppm※(See Notes ) |
Operating Temperature Range | -20℃ - +70℃ / -40℃ - +85℃ |
Storage Temperature Range | -40℃ - +85℃ /-55℃ - +125℃ |
Aging（25℃） | ±5ppm/ year max. |
Shunt Capacitance（C0） | 7pF max. |
Drive Level | 100μw Typical |
Insulaton Resistance（Rs） | 500 Megaohms Minimum at D.C100V |
Load Capacitance（CL） | Suggested by customer |
※Notes:±10，±20，±30ppm (-20℃ to +70℃)
±20，±30，±50ppm (-40℃ to +85℃) or depends on customer
Frequency Range | ESR（Ω） | Mode |
1.8432MHz≤ f ＜1.999MHz | 500Ωmax | Fundamental |
2MHz≤ f ＜2.456MHz | 450Ωmax | Fundamental |
2.457MHz≤ f ＜2.999MHz | 350Ωmax | Fundamental |
3MHz≤ f ＜3.999MHz | 90Ωmax | Fundamental |
4MHz≤ f ＜4.999MHz | 70Ωmax | Fundamental |
5MHz≤ f ＜7.999MHz | 60Ωmax | Fundamental |
8MHz≤ f ＜9.999MHz | 30Ωmax | Fundamental |
10MHz≤ f ＜50MHz | 25Ωmax | Fundamental |
24MHz≤ f ＜100MHz | 40Ωmax | Third Overtone |

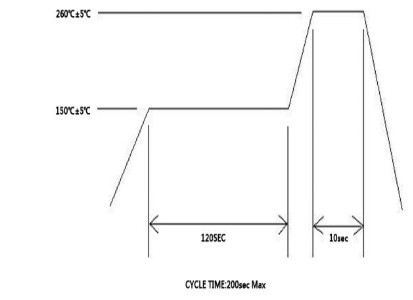

![}S%(V5M]4GC9UF175JCNB89.png](/data/upload/ueditor/20180613/5b20843603fe1.png "}S%(V5M]4GC9UF175JCNB89.png")
